পণ্যের বিবরণ:
|
| voltage current: | 250V 5A | temperature range: | 30 to 150C |
|---|---|---|---|
| life time: | 10000 times | size: | 15*7.1*3.8mm |
| use for: | motor, battery pack | ||
| লক্ষণীয় করা: | bimetal thermostat switch,bimetal thermal switch |
||

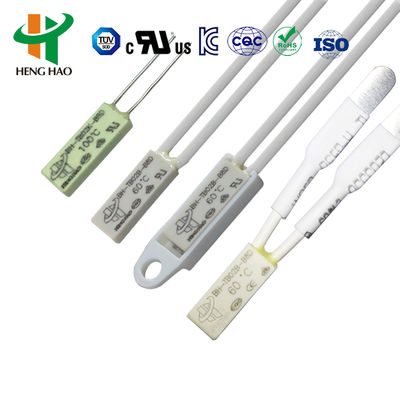

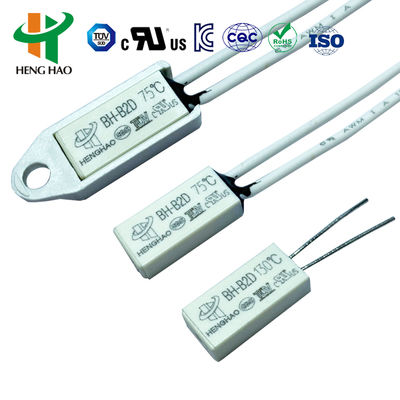

Temperature protector thermal fuse BH-B2D with 15*7.1*3.8mm TUV CQC UL ROHS
BH-B2D series thermostat’s Principle and structure
BH-B2D series that can protect against over-current and over-temperature are sealed firmly, small internal resistance, no noise and reset automatically. When current through bimetal that are sensitive to temperature and current, the status of the bimetal will be changed by over-temperature or over-current to cut off circuit or switch on circuit. BH series are safer than normal protectors, as there is no temperature effect lag under condition of sudden big current.
BH-B2D series thermostat’s Specification
| Electrical Rating | DC-12V max 12A; DC-24V max 10A; AC-125V max 8A; AC-250V max 16A |
| Open temperature | (30~150)±5°C; 5°C a step |
| Reset temperature | 2/3 of the action temperature with tolerance of ±15°C. Reset temperature can also be provided according to customers' requirement. |
| Life times | 10000 times |
| Size | L15mm W7.1mm H3.8mm |
| Lead wire | #22 3266, end half tripping, length is 70mm, or according to customer’s require |
| UL File no | E487478 |
| CQC certificate no | CQC16002142880 |
| TUV certificate no | B160592241002 |
BH-B2D series thermostat’s Application and Instruction
BH series thermal protectors ,effective reliable security protector and alarm devices, are widely used in various types 1.5 horsepower motors, lighting device, inverter welding machine, switch power, rechargeable battery pack, fluorescent lamp ballasts, portable power tools, electric appliances and other electric equipment to prevent from over-current & over-heating caused by abnormal work status. Enforced types that can withstand pressure of 3.5MPa are fit for build-in-installation of plastic coated motor.
BH-B2D thermal protector temperature code
| Code | Temperature | Code | Temperature |
| 30 | 30℃ | 100 | 100℃ |
| 35 | 35℃ | 105 | 105℃ |
| 40 | 40℃ | 110 | 110℃ |
| 45 | 45℃ | 115 | 115℃ |
| 50 | 50℃ | 120 | 120℃ |
| 55 | 55℃ | 125 | 125℃ |
| 60 | 60℃ | 130 | 130℃ |
| 70 | 70℃ | 135 | 135℃ |
| 75 | 75℃ | 140 | 140℃ |
| 80 | 80℃ | 145 | 145℃ |
| 85 | 85℃ | 150 | 150℃ |
| 90 | 90℃ |
BH-B2D thermal protector Code of Item No.
BH-B2D XXX K
| BH | Design No. |
| B | Material of case: metal-A; Plastic-B |
| 2 |
1,15×6.6×3.2 2,15×7.1×3.8 |
| D |
Resistance value of bimetallic G-highZ-moderateD-low |
| XXX | Open temperature |
| K | Type of Contact: K is Open, No signal is closed |
BH-B2D thremal protector's drawing
