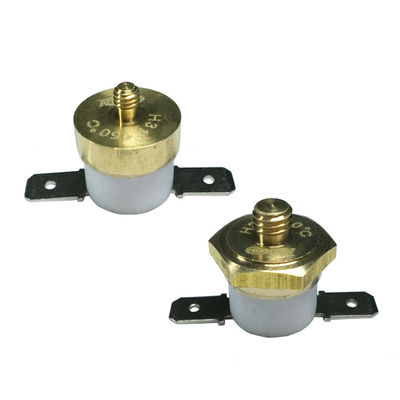

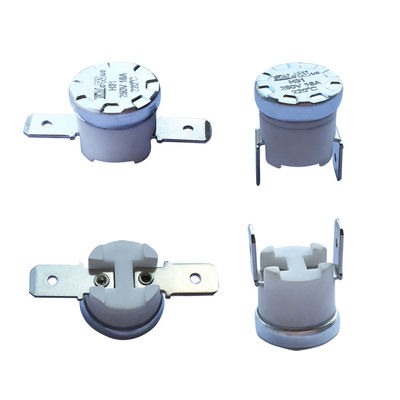

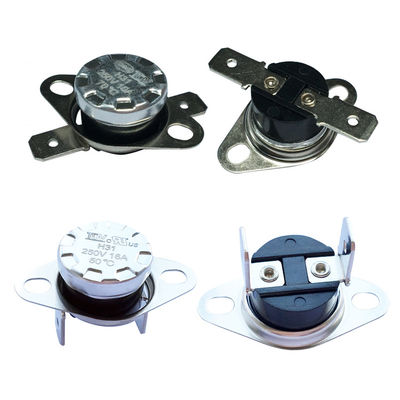

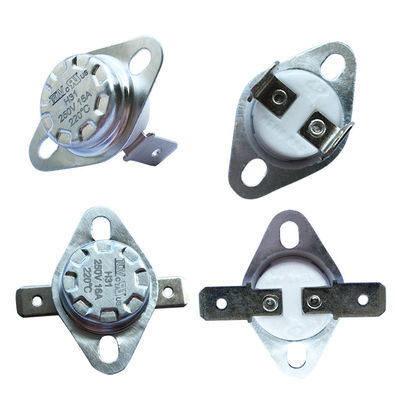

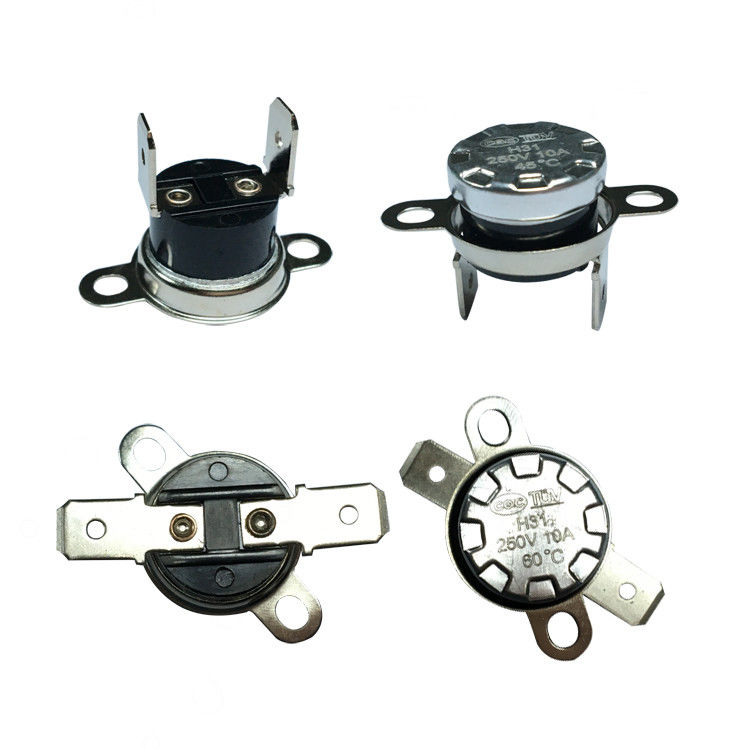

3/4" KSD302 Bimetal Snap Action Thermostat 250VAC

বড় ইমেজ : 3/4" KSD302 Bimetal Snap Action Thermostat 250VAC

পণ্যের বিবরণ:

Place of Origin:	DONGGUAN,CHINA
পরিচিতিমুলক নাম:	HENGHAO
সাক্ষ্যদান:	UL CQC TUV ROHS
Model Number:	KSD301

প্রদান:

Minimum Order Quantity:	1000PCS
মূল্য:	US$0.2-0.3PER,PC
Packaging Details:	1650PCS PER CARTON
Delivery Time:	7-10 WORKING DAYS
Payment Terms:	TT FOB SZ
Supply Ability:	1000000 PCS PER MONTH

যোগাযোগ

3/4" KSD302 Bimetal Snap Action Thermostat 250VAC

বিবরণ

Type:	Refrigerator Parts	Product name:	ceramic thermal switch ceramic thermostat KSD302
Current:	5A-45A	সাক্ষ্যদান:	TUV,UL,CQC
Voltage:	125/250VAC	Temperature range:	50-250℃
Life cycle:	30000 Times	Volts:	250V
Working temperature:	75~185 ℃
বিশেষভাবে তুলে ধরা:	3/4" Bimetal Thermostat , Bimetal Snap Action Thermostat 250VAC , KSD302 Bimetal Snap Action Thermostat

3/4" KSD302 Bimetal Thermostat Snap Action 250V Thermostat For Home Appliance

KSD301 thermostat / bimetal thermal protector / KSD301 temperature protector

The body can be customized as ceramic.

Reset mothed: Automatic

Temperature range: 45-150F adjustable

Contct Type: SPST NO or NC

Insulation resistance:More than 100MΩ;

Service life: 10000 cycle,

Terminal angle & Reset temperature can be made according to customer's requirment.

Typical Applications:

•Water Heater, Laundry, Fire plate, Hair Dryer, Coffee Maker

•Toaster, Water Dispenser

Open temperature & reset temperature

1. According to customer’s request to set the open temperature and reset temperature.

2. The standard open temperature and reset temperature’s sheet for auto reset type as below

Open Temp.	Reset Temp.	Open Temp.	Reset Temp.	Open Temp.	Reset Temp.
-20℃+-5℃	5℃+-5℃	95℃+-5℃	80℃+-5℃	205℃+-5℃	175℃+-10℃
-15℃+-5℃	5℃+-5℃	100℃+-5℃	80℃+-10℃	210℃+-5℃	180℃+-10℃
-10℃+-5℃	5℃+-5℃	105℃+-5℃	85℃+-10℃	215℃+-5℃	185℃+-10℃
0℃+-5℃	-10℃+-5℃	110℃+-5℃	90℃+-10℃	220℃+-5℃	190℃+-10℃
5℃+-5℃	-5℃+-5℃	115℃+-5℃	95℃+-10℃	225℃+-5℃	195℃+-10℃
10℃+-5℃	0℃+-5℃	120℃+-5℃	100℃+-10℃	230℃+-5℃	200℃+-10℃
15℃+-5℃	5℃+-5℃	125℃+-5℃	105℃+-10℃	235℃+-5℃	205℃+-10℃
20℃+-5℃	5℃+-5℃	130℃+-5℃	110℃+-10℃	240℃+-5℃	210℃+-10℃
25℃+-5℃	10℃+-5℃	135℃+-5℃	115℃+-10℃	245℃+-5℃	215℃+-10℃
30℃+-5℃	15℃+-5℃	140℃+-5℃	120℃+-10℃	250℃+-5℃	220℃+-10℃
35℃+-5℃	20℃+-5℃	145℃+-5℃	125℃+-10℃	255℃+-5℃	225℃+-10℃
40℃+-5℃	25℃+-5℃	150℃+-5℃	130℃+-10℃	260℃+-5℃	230℃+-10℃
45℃+-5℃	30℃+-5℃	155℃+-5℃	130℃+-10℃	265℃+-5℃	235℃+-10℃
50℃+-5℃	35℃+-5℃	160℃+-5℃	135℃+-10℃	270℃+-5℃	240℃+-10℃
55℃+-5℃	40℃+-5℃	165℃+-5℃	140℃+-10℃	275℃+-5℃	245℃+-10℃
60℃+-5℃	45℃+-5℃	170℃+-5℃	145℃+-10℃	280℃+-5℃	250℃+-10℃
65℃+-5℃	50℃+-5℃	175℃+-5℃	150℃+-10℃	285℃+-5℃	255℃+-10℃
70℃+-5℃	55℃+-5℃	180℃+-5℃	155℃+-10℃	290℃+-5℃	260℃+-10℃
75℃+-5℃	60℃+-5℃	185℃+-5℃	155℃+-10℃	295℃+-5℃	265℃+-10℃
80℃+-5℃	65℃+-5℃	190℃+-5℃	160℃+-10℃	300℃+-5℃	270℃+-10℃
85℃+-5℃	70℃+-5℃	195℃+-5℃	165℃+-10℃
90℃+-5℃	75℃+-5℃	200℃+-5℃	170℃+-10℃

The product UL,CQC,VDE and RoHS certification approval.
